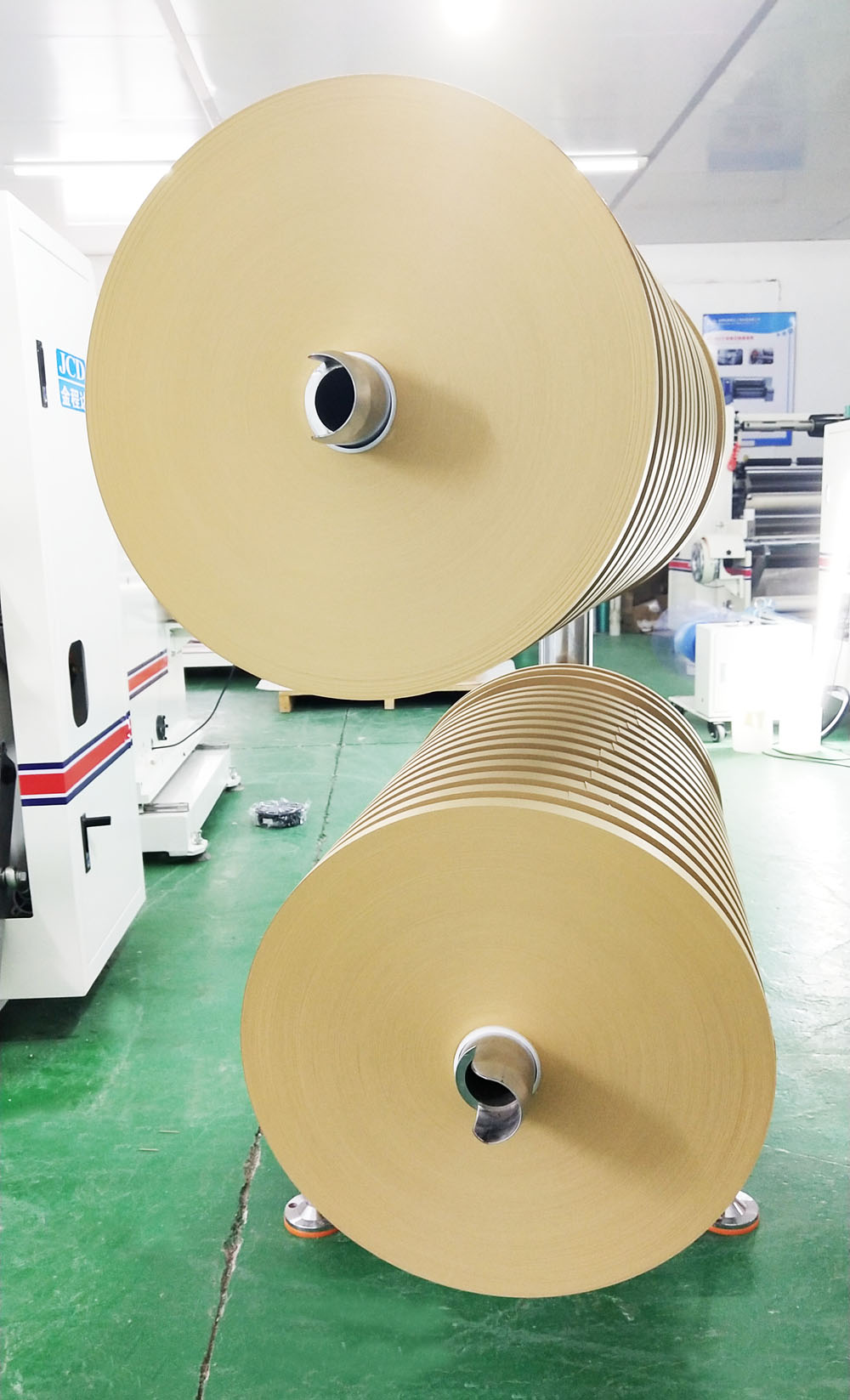

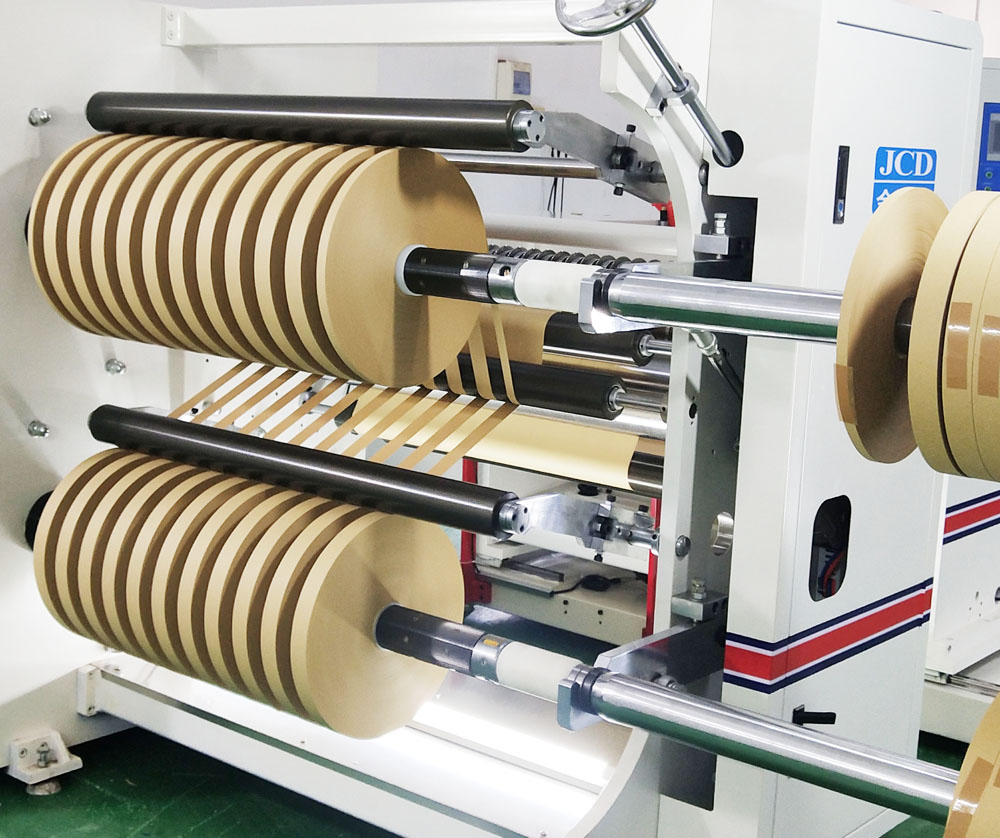

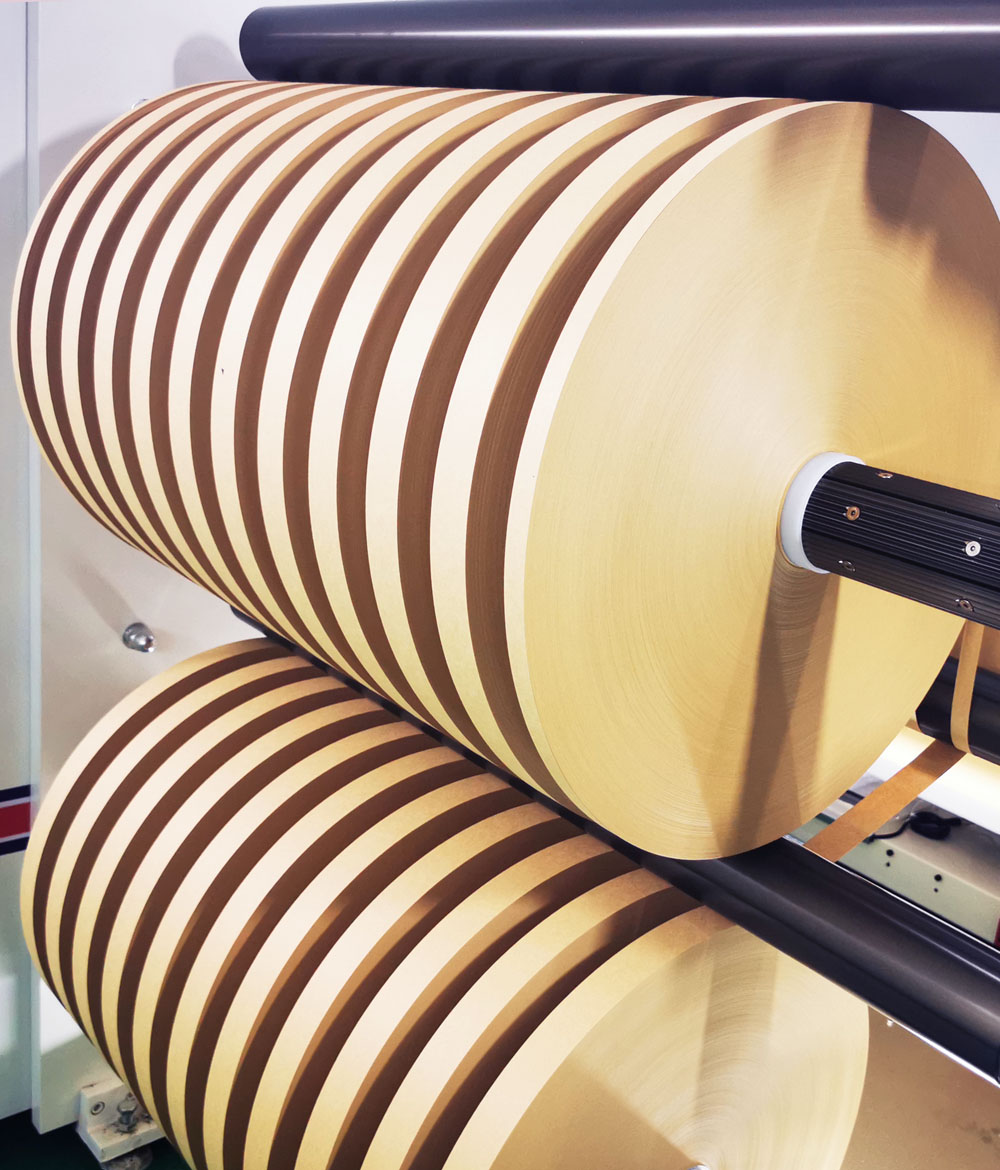

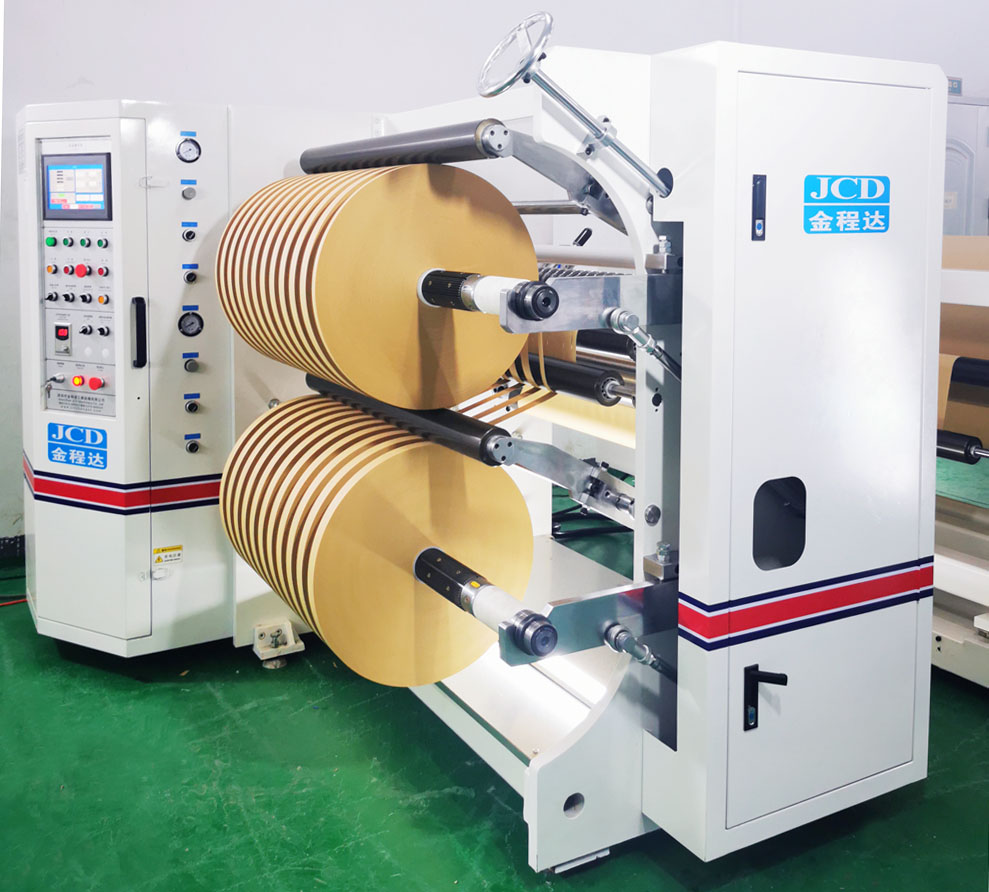

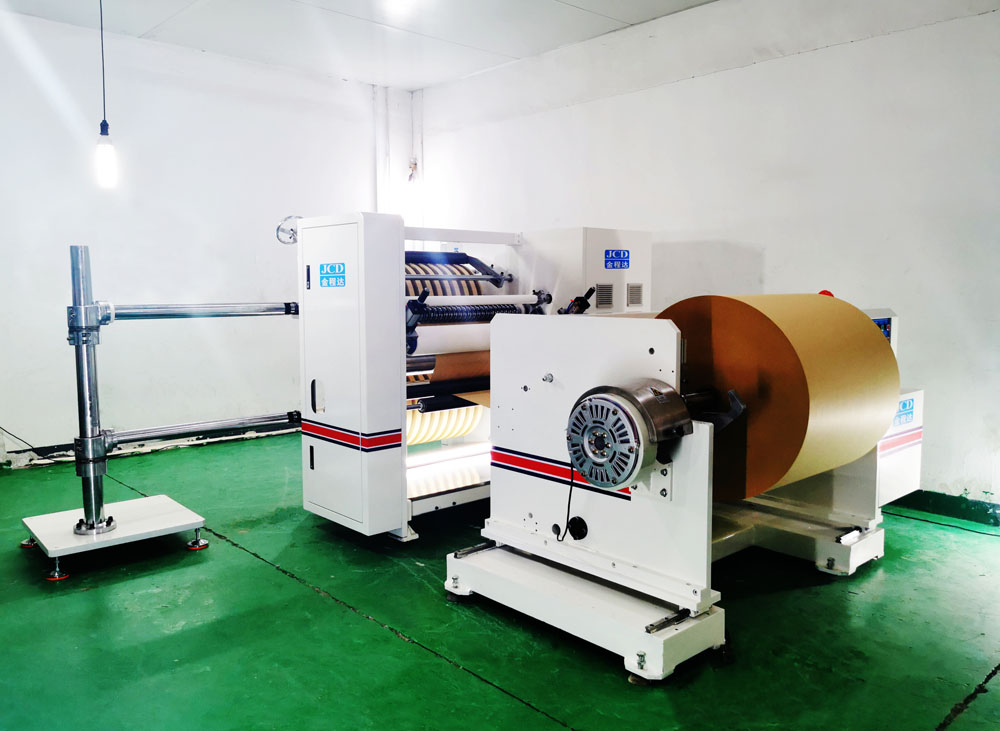

JC-S03C 120 gsm Kraft Line Paper Jumbo Roll Slitting Rewinding Machine
Machine function:
This machine is suitable for slitting and rewinding kinds of papers, films, adhesive tapes and foils etc.
Such as the kraft paper, melt-blown fabric, double sides tape, aluminum foil, non-woven etc.
Main technical parameters:
| Model | JC-S03C |
| Material width | 650mm~1800mm |
| Max.unwind diameter | 1200mm |
| Max.rewind diameter | 550mm |
| Slitting knife | Round knife/ straight knife |
| I.D of paper core | 3''/6'' |
| Min.slitting width | 25mm |
| Speed | 0-200 M/min |
| Voltage | 3 Phase 380V/ 50HZ |
| Power | 15 HP |
| Air pressure | 6 KG/CM2 |
