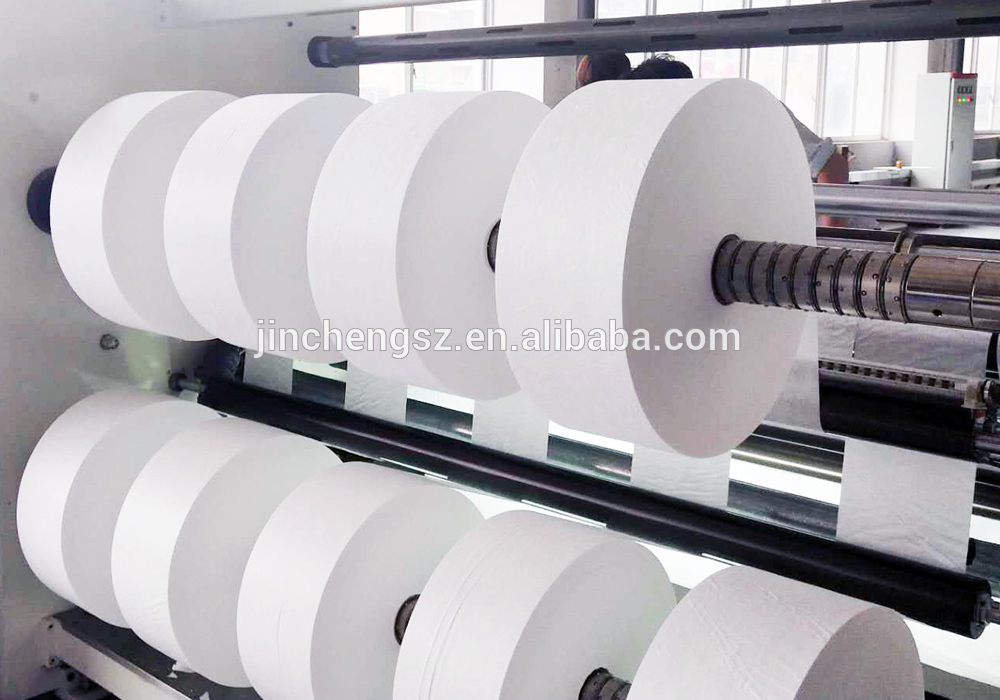

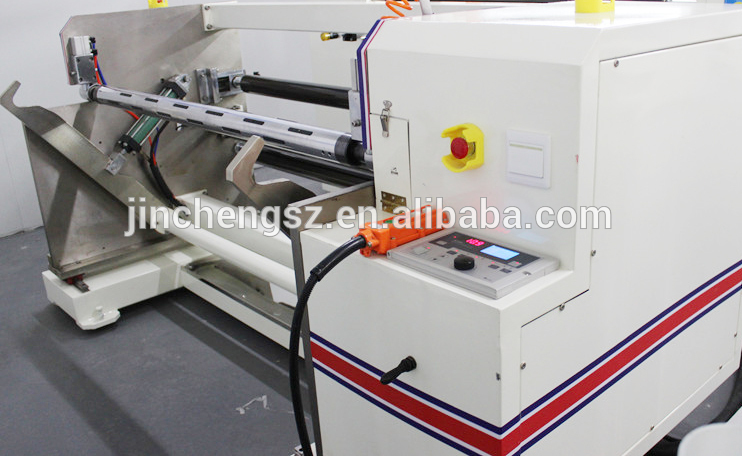

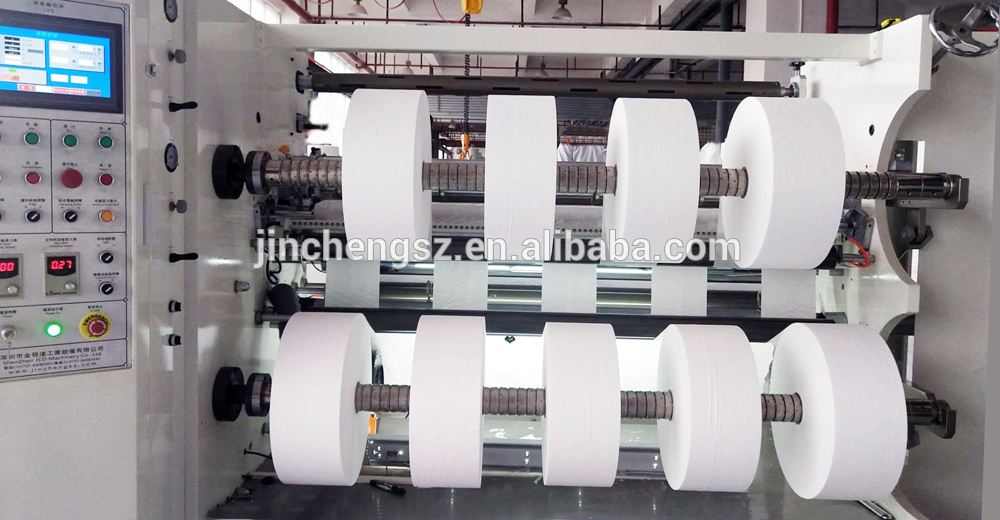

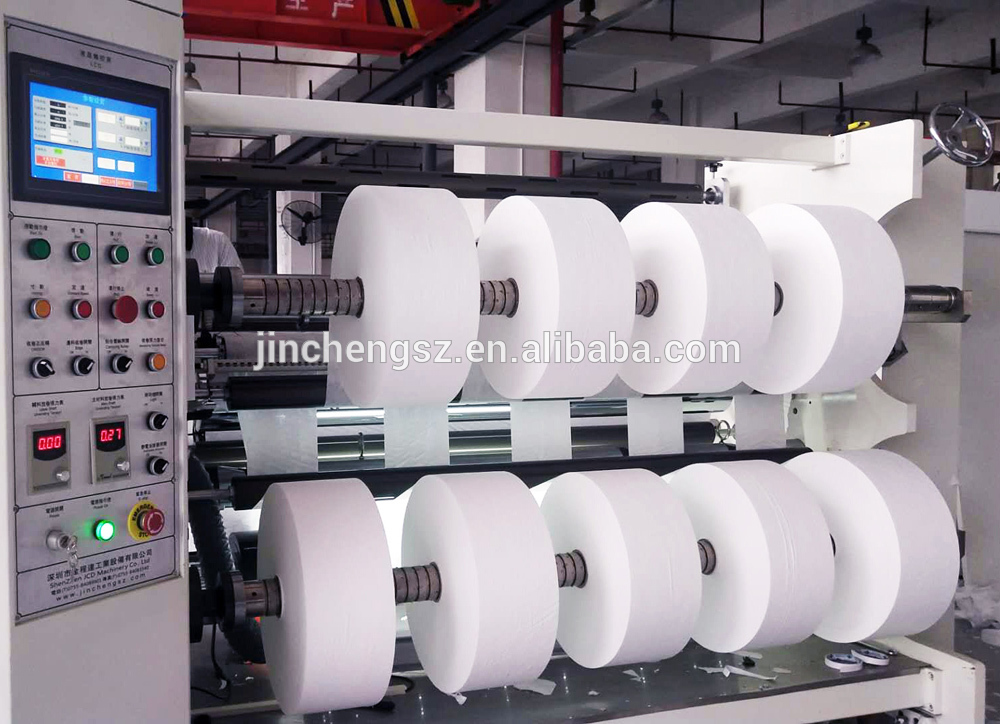

JC-S03C 1600MM mask material melt blown fabric roll cutting machine

♦♦♦ APPLICATION :

♦♦♦ FEATURES :

1	Main unit controlled by 3 motors, make sure the stable speed and tension for slitting and rewinding.
2	High accurate PLC control system for both unwind and rewind tension.
3	Differential shafts for rewinding. Ensure the proper rewind tension according to the rewind diameter.
4	Hydraulic lifter for jumbo roll loading. Save both time and labour.

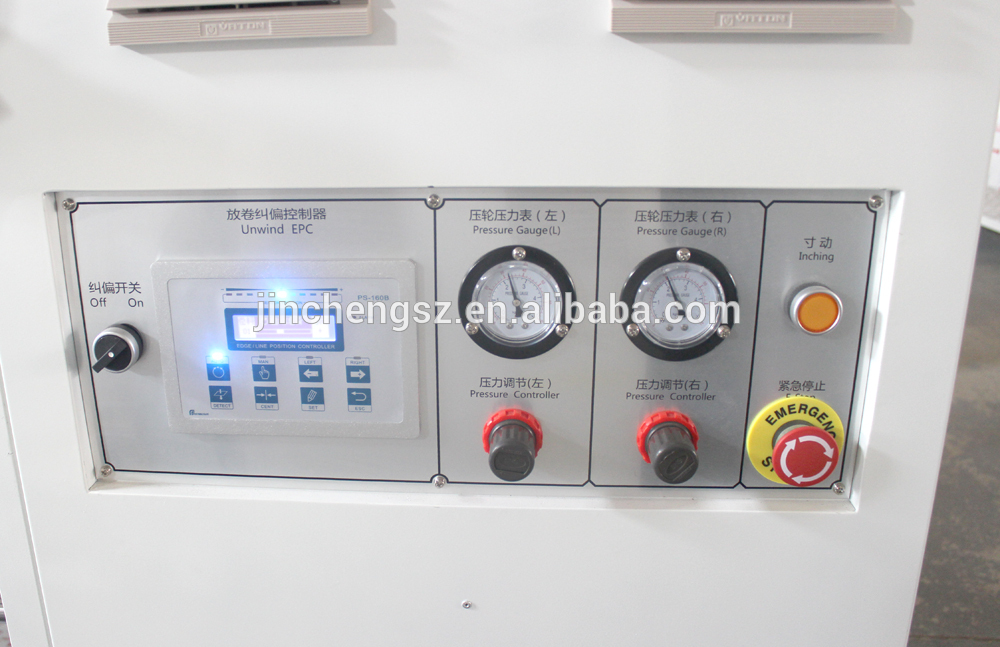

5	Auto EPC device for jumbo roll web guiding. Auto conrrection for the web and reduce material waste.
6	Slitting knife by sharping upper and lower circular blades. The slitting size is adjustable.
7	LCD panel to set up the laminating and slitting data. Ensure the easy and precision operation.

♦♦♦ Optional device:

1	All-in-one type machine to save space.
2	Shaft-less stand type unwinding system according to special material required.
3	Automatic finished roll discharging device. Makes the finish roll unloading easier and faster.
4	Internal waste trimming device. Ensure clean surface for finish roll.
5	Splice table for web connecting. To save time and labour.

♦♦♦ Specifications/ technical parameters:

Model	JC-S03C
Material width	1600mm
Max.unwind diameter	800mm
Max.rewind diameter	550mm
I.D of paper core	3''/ 6''
Min.slitting width	25mm
Rewind speed	0-180 M/min
Voltage	3 phase 380V/ 50HZ
Power	15 HP
G.W	3500 KG
Machine size	3000x2800x1600mm
Different specifications can be customized according to customer requirements.
