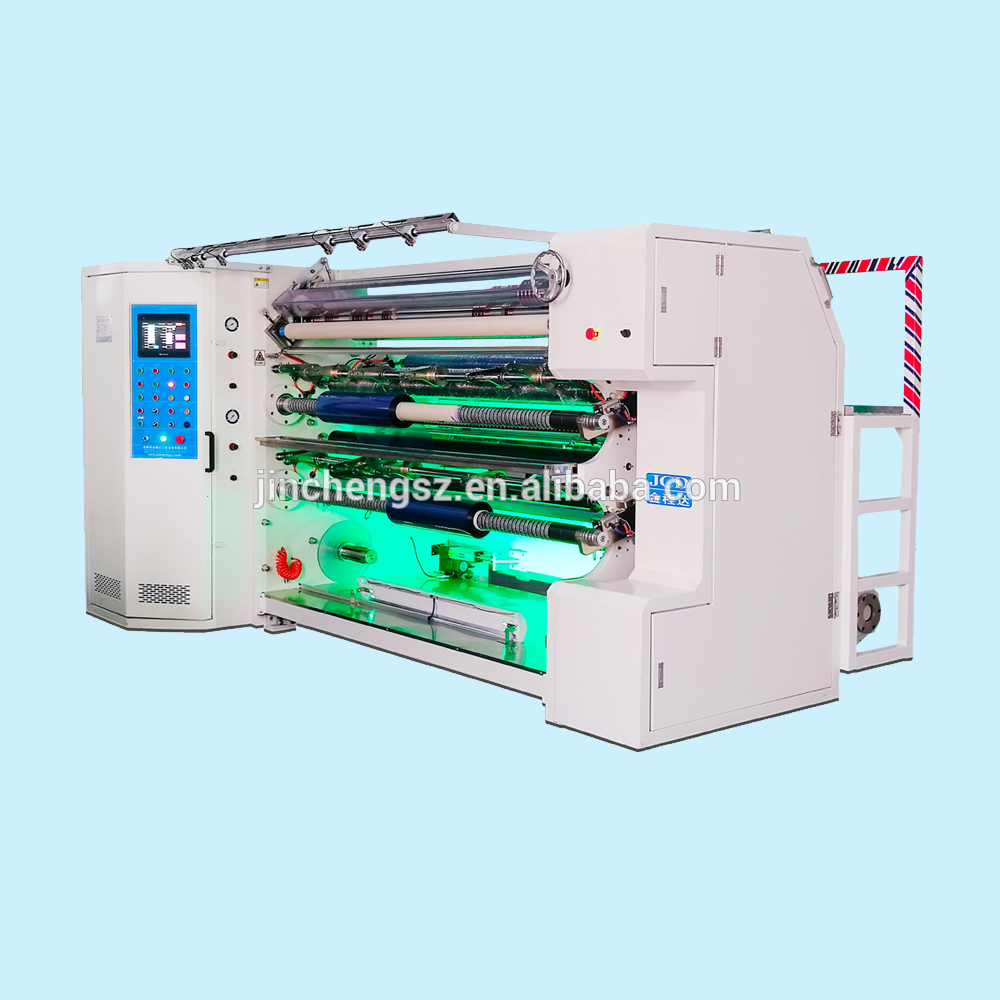

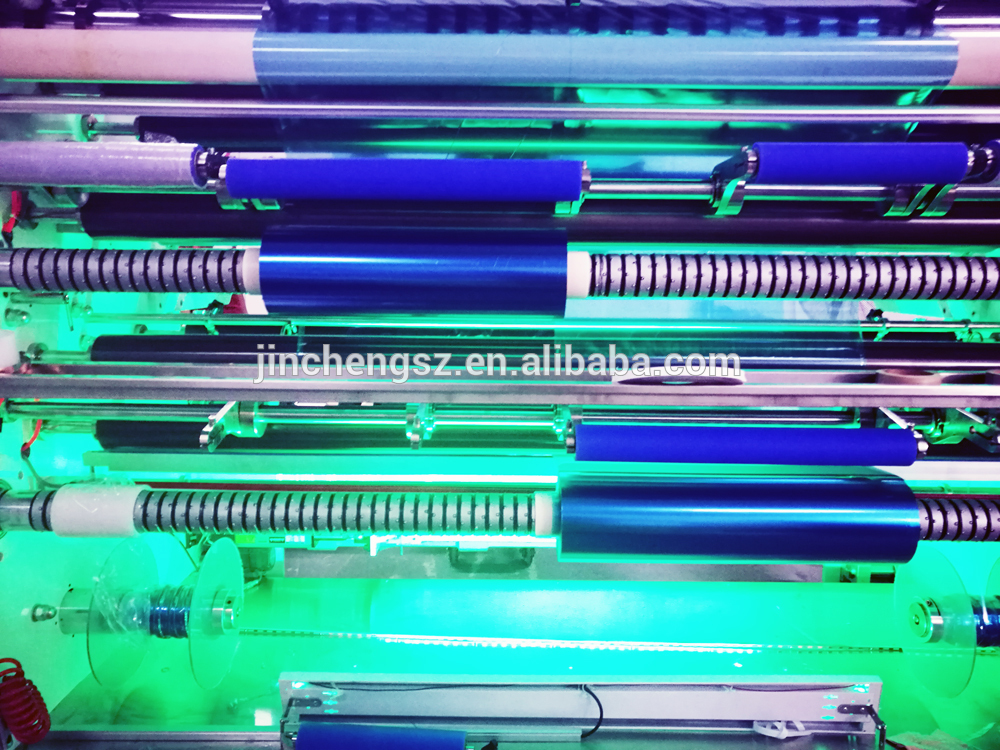

JC-S03E PCB Photosensitive dry film jumbo roll slitter rewinder machine
JC-S03E PCB Photosensitive dry film jumbo roll slitter rewinder machine.
♦♦♦ FUNCTION :
This machine is used for slitting and rewinding the PCB photosensitive dry film from jumbo roll to small finish roll.
♦♦♦ FEATURES :
| 1 | Main unit controlled by 3 motors, make sure the stable speed and tension for slitting and rewinding. |
| 2 | High accurate PLC control system for both unwind and rewind tension. |
| 3 | Differential shafts for rewinding. Ensure the proper rewind tension according to the rewind diameter. |
| 4 | Shaft-less clamping type unwinding frame for automatic electric jumbo roll feeding. |
| 5 | Auto EPC device for jumbo roll web guiding. Auto conrrection for the web and reduce material waste. |
| 6 | Slitting knife by sharping upper and lower circular blades. The slitting size is adjustable. |
| 7 | LCD panel to set up the laminating and slitting data. Ensure the easy and precision operation. |
♦♦♦ Optional device:
| 1 | All-in-one type machine to save space. |
| 2 | Shaft-less stand type unwinding system according to special material required. |
| 3 | Automatic finished roll discharging device. Makes the finish roll unloading easier and faster. |
| 4 | Internal waste trimming device. Ensure clean surface for finish roll. |
| 5 | Splice table for web connecting. TO save time and labour. |
♦♦♦ Specifications/ technical parameters:
| Material width | 1300mm~2000mm ( as your request) |
| Max.unwind diameter | 800mm |
| Max.rewind diameter | 300mm |
| I.D of paper core | 3''/ 6'' |
| Min.slitting width | 25mm |
| Rewind speed | 0-180 M/min |
| Voltage | 3 phase 380V/ 50HZ |
| Power | 20 HP |
| G.W | 5000 KG |
| Machine size | 3000x2800x1600mm |
Different specifications can be customized according to customer requirements. | |

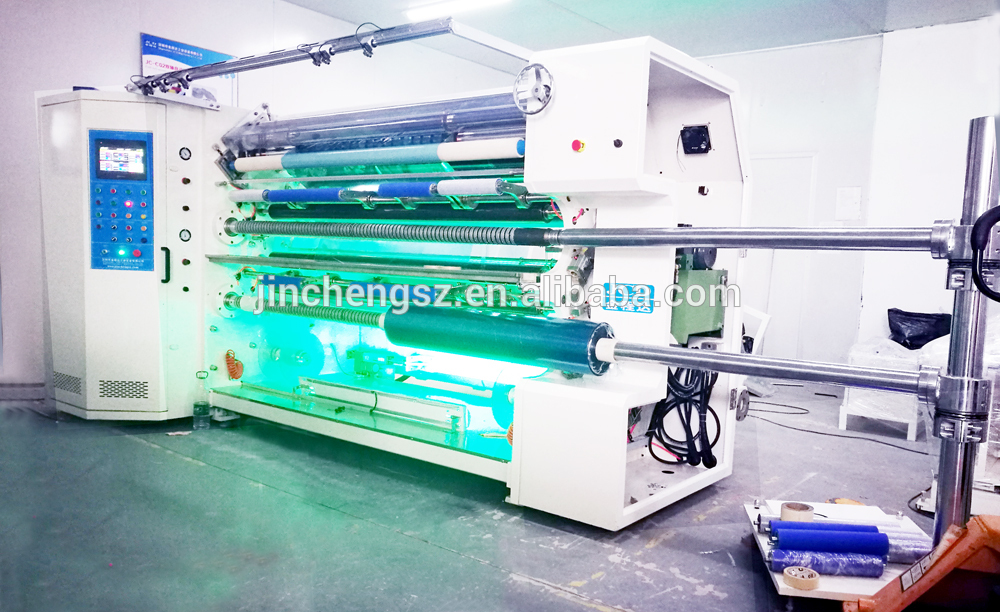

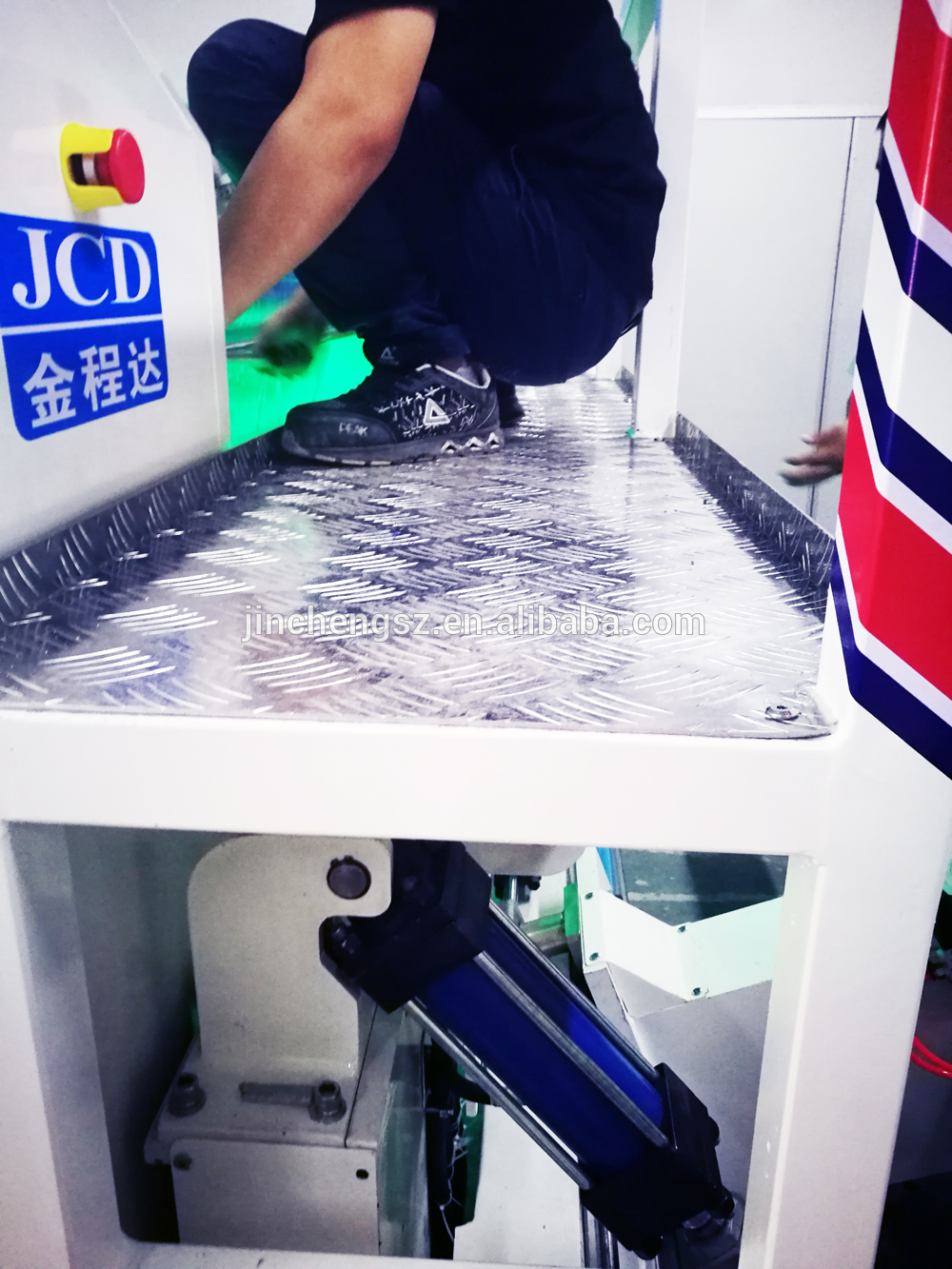

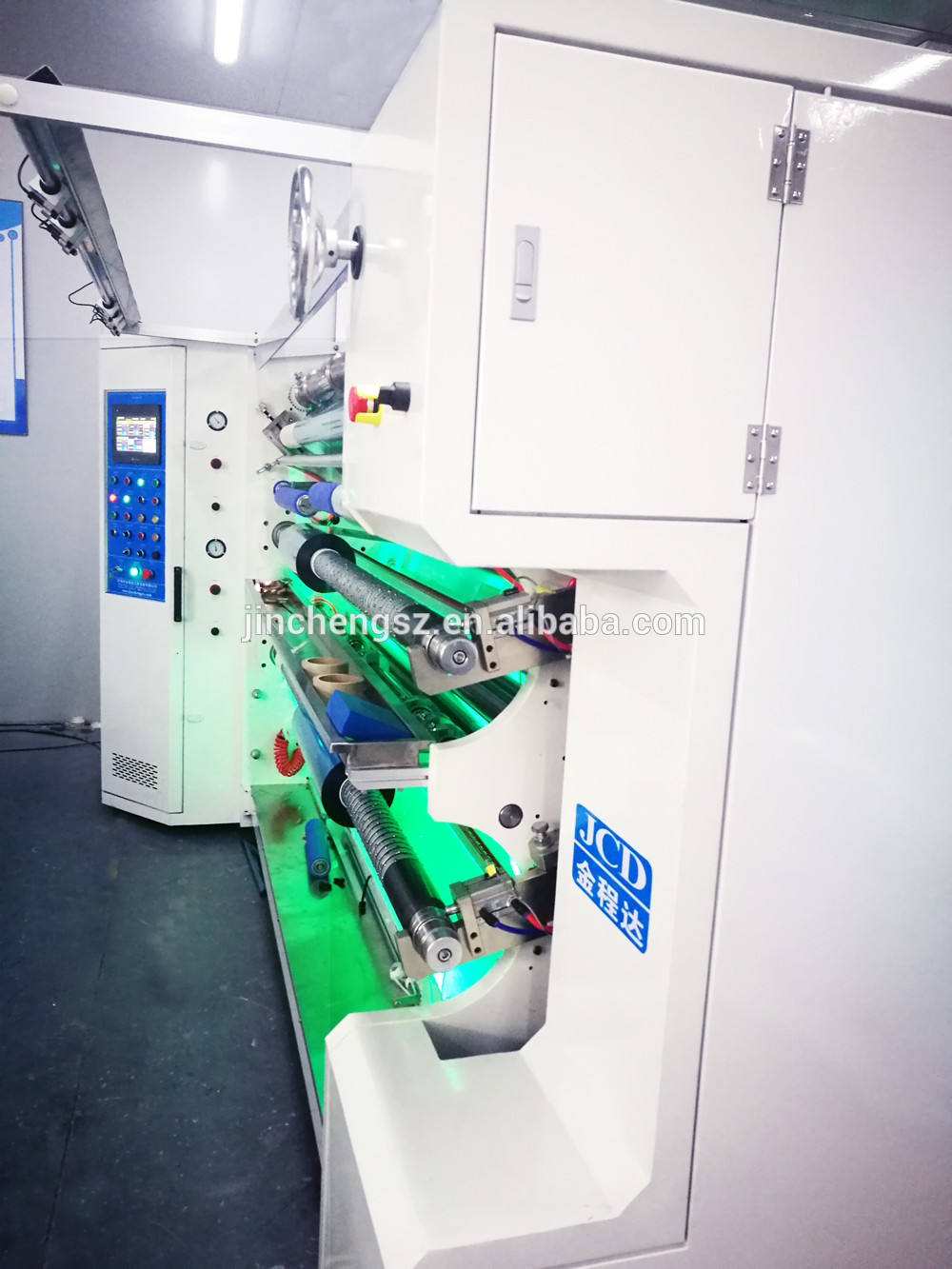

MORE PHOTOS :
